Contact us for pricing

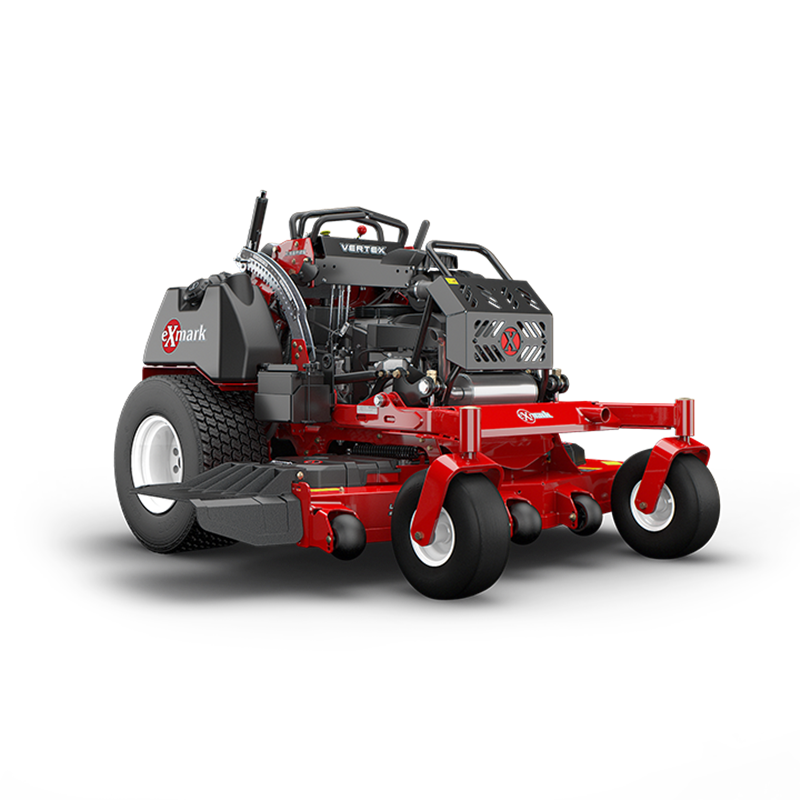

Designed to raise the bar for stand-on mower performance and productivity, Vertex X-Series uses the same formed and welded tubular steel frame and heavy-duty 15-inch casters as our premier Lazer Z zero-turn riding mowers. With carbureted Kawasaki FX1000 engines, you’ll have the power to finish jobs faster, with a better quality of cut thanks to our unmatched UltraCut cutting decks. One look and it’s easy to see why the Vertex X-Series is the next generation of stand-on mowers.
UPC
193308241357
Starter
Electric
Steering Control
Twin levers with center fixed reference bar for ease of control forward and reverse
Front Caster Tires
15 x 6.0-6, smooth-tread, semipneumatic tires with tapered roller bearings.
Drive Tires
24 x 12-12 Hoosier Grass Master
Parking Brake
Lever-actuated internal motor brake
Tractor Frame
Welded, heavy-duty 1.5″ x 3.0″ tubular steel.
Blade Spindles
No maintenance, sealed and nongreasable spindles; 7.75″ diameter cutter housing with 1.75″ diameter splined blade driver 1.0″-diameter spindle shaft.
Cup Holder
Yes
Electrical
12-volt battery with 30-amp alternator.
Standard Features
Enhanced Engine Hour Meter
Engine Brand
Kawasaki
Transmission Brand
Hydro-Gear
Transmission Speeds
Infinitely Variable
Engine Model
FX1000V
Engine Displacement
999
Engine Series
V-Twin
Fuel System
Carbureted
Speed
Infinitely variable speed selection 0–12.0 mph forward, 0–5.0 mph reverse
Transmission
Hydrostatic
Engine Speed
3,600 rpm
Air Filter
Heavy-duty canister air filtration system
Fuel Capacity
14-gallon dual fuel tanks on RH and LH side
Drive Description
Two Hydro-Gear 16 cc pumps powering two Hydro gear 17.8 cubic inch motors.
Fuel Type
Gas Carbureted
PTO Engagement
Warner 250 ft-lb clutch
Drive System
Hydro-Drive
Drive Wheel Release
Allows unit movement without engine running.
Fuel Indicator
Float gauge
Deck Lift
Single point HOC; with mechanical lift-assist springs.
Carb Compliant
NO
Safety Package
Operator Presence Controls (OPC) with safety interlock system indicators
Deck Style
Floating Deck
Deck Style Description
Full-floating UltraCut Series 6. Side discharge standard, with molded discharge chute and option to mulch.
Width / Cutting Deck
72″
Deck Construction
10-gauge top that is formed and continuously seam welded, 7-gauge side skirt
Cutting Heights
1.5″ to 5.0″ in 0.25″ increments
Blade Tip Speed
Approximately 18,500 fpm
Blades
3 Blades at 24.50″ Length
Width
84.83″
Height
48.75″
Curb Weight
1400
Length
77.11″
