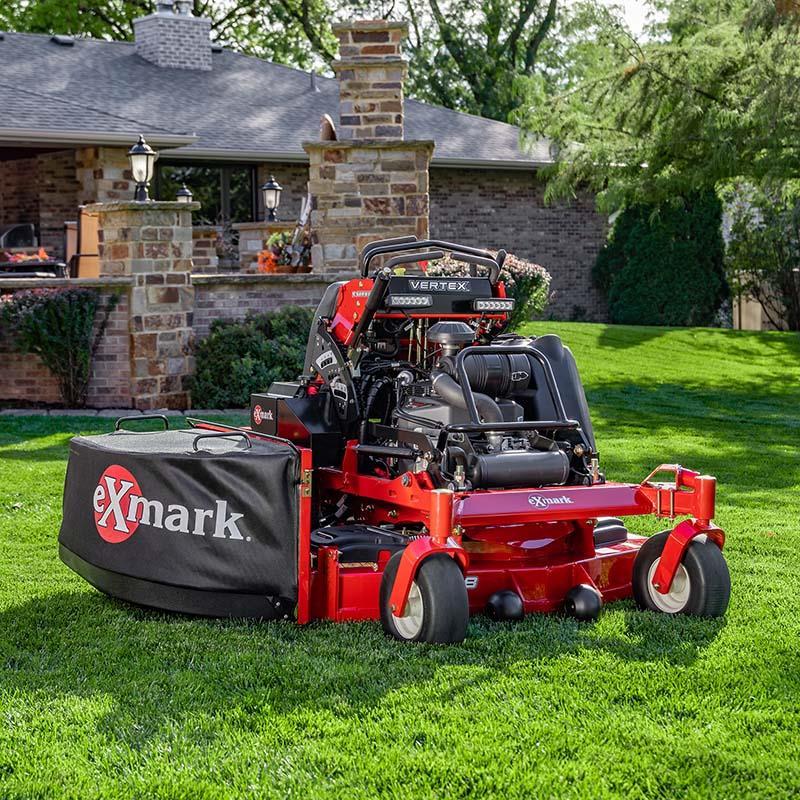

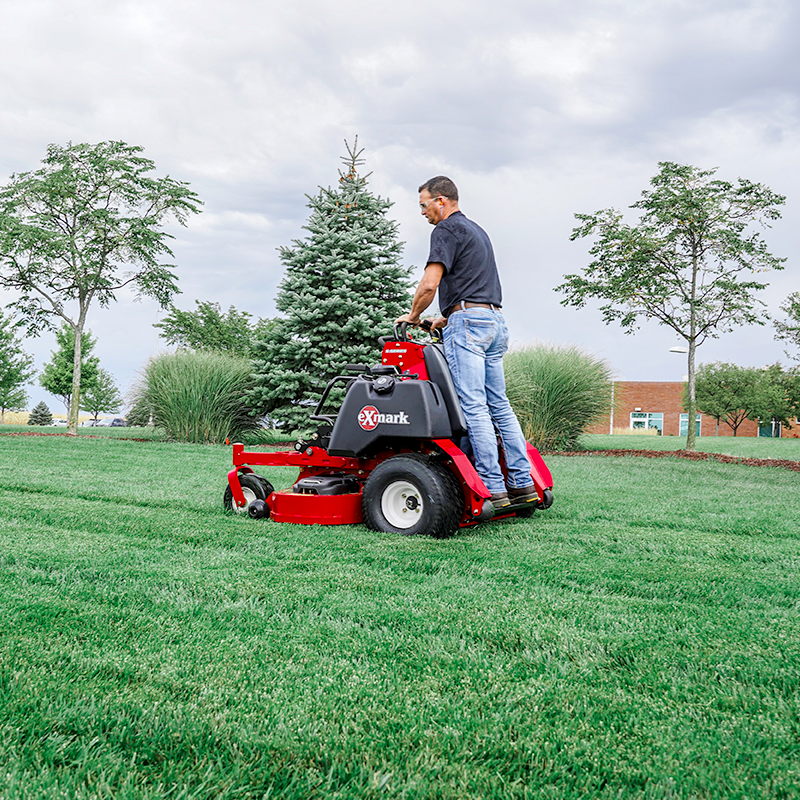

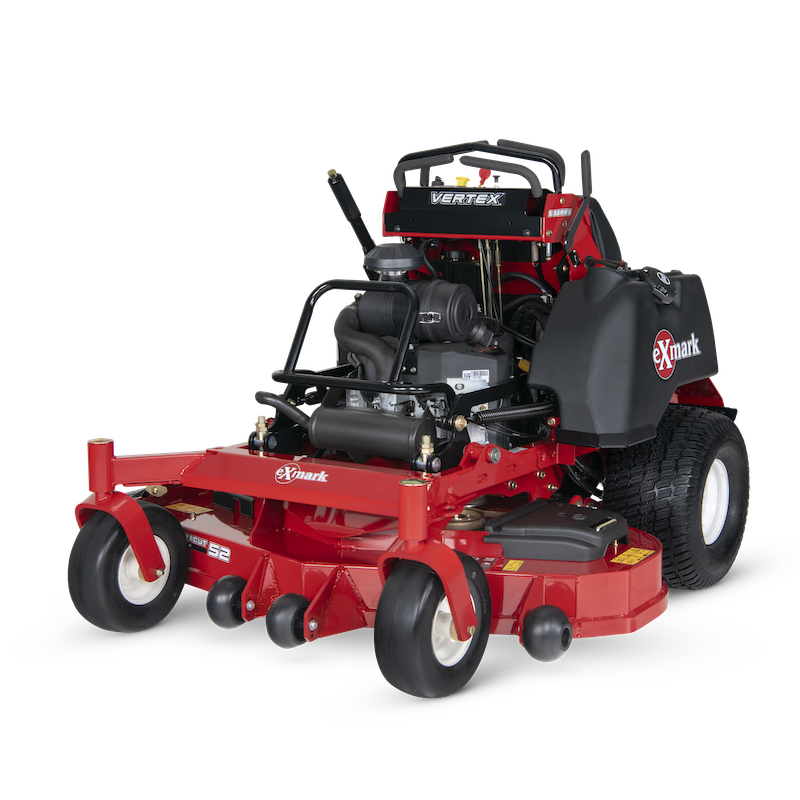

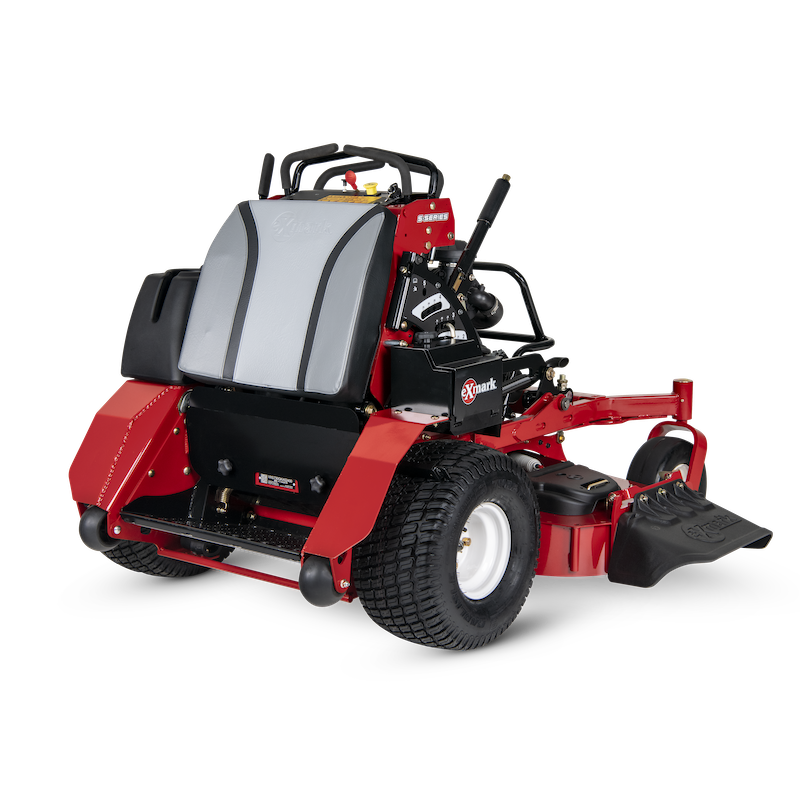

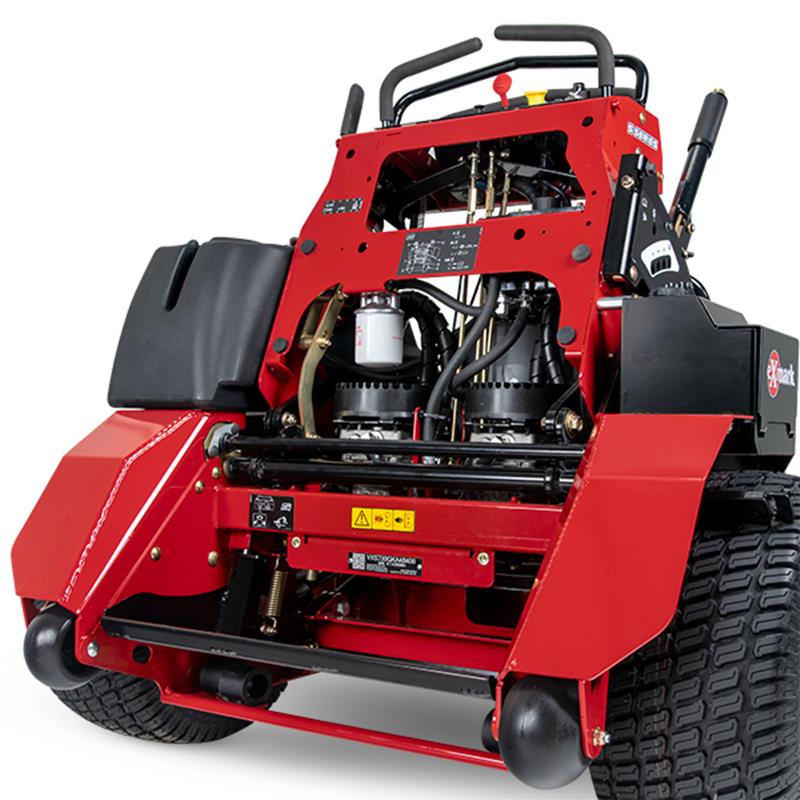

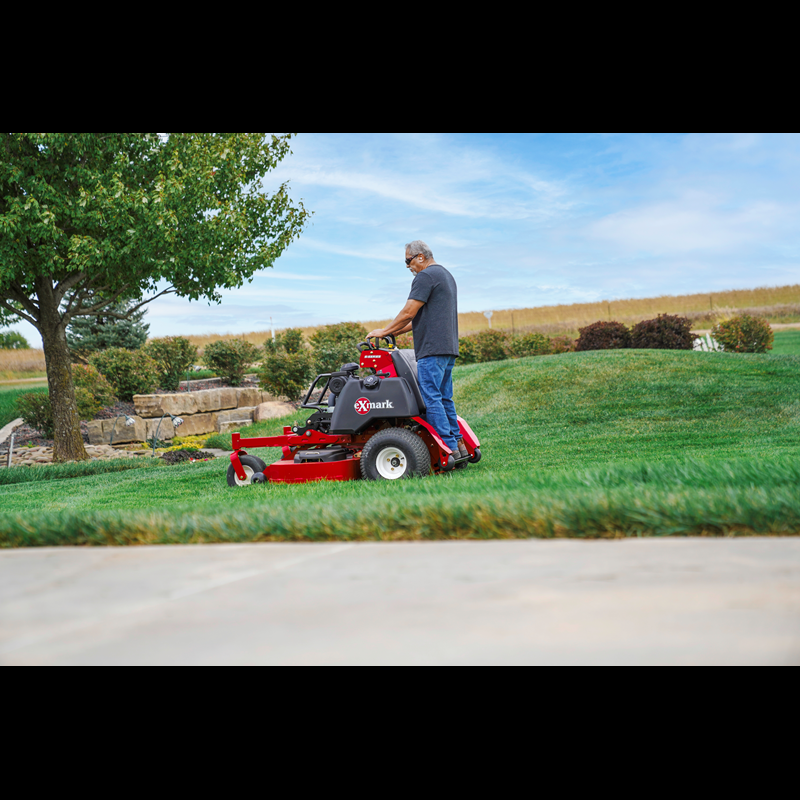

The Vertex S-Series stand-on zero-turn mowers are ready to take your productivity and profitability to the next level. With a design that centralizes mass low in the mower chassis, Vertex is ultra-maneuverable, yet stable and easy to control. The control panel is ergonomically designed and centrally located to improve operator comfort. Exmark’s proven hydro drive system delivers ground speeds of up to 8.5mph, enabling Vertex to quickly finish large jobs. Built with a Kawasaki V-Twin or Kohler EFI engine to increase fuel efficiency so you can stay out in the field longer. Choose from 48-, 52-, or 60-inch UltraCut Series 4 side-discharge cutting decks, featuring easy rake adjustment and anti-scalp rollers, for an Exmark signature finish cut quality every time.Looking for a more compact stand-on mower? Check out the Vertex E-Series.
UPC
193308240862
Starter
Electric

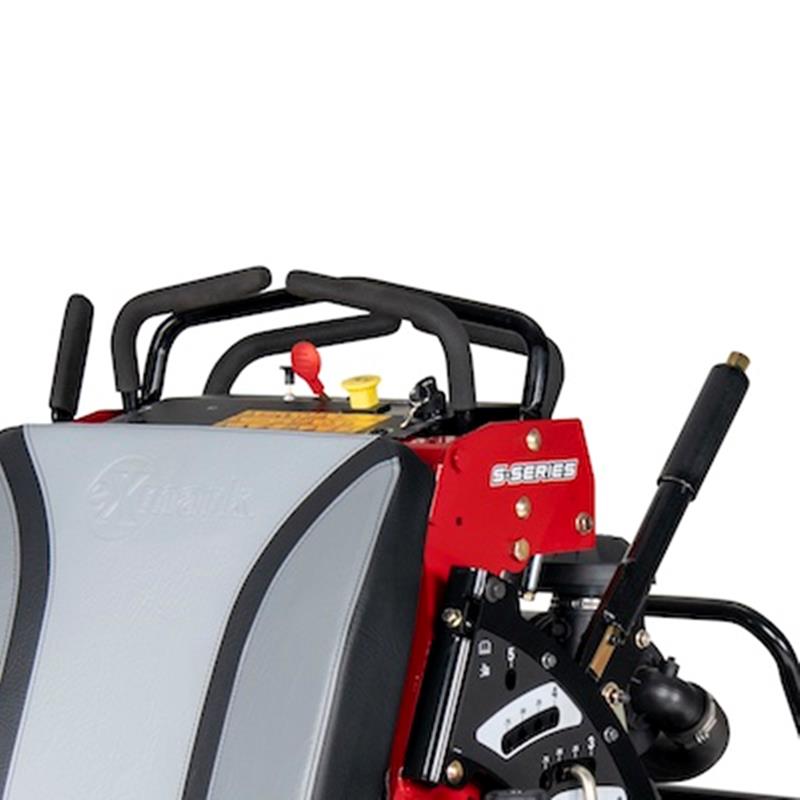

Steering Control
Twin levers with center fixed reference bar for ease of control forward and reverse

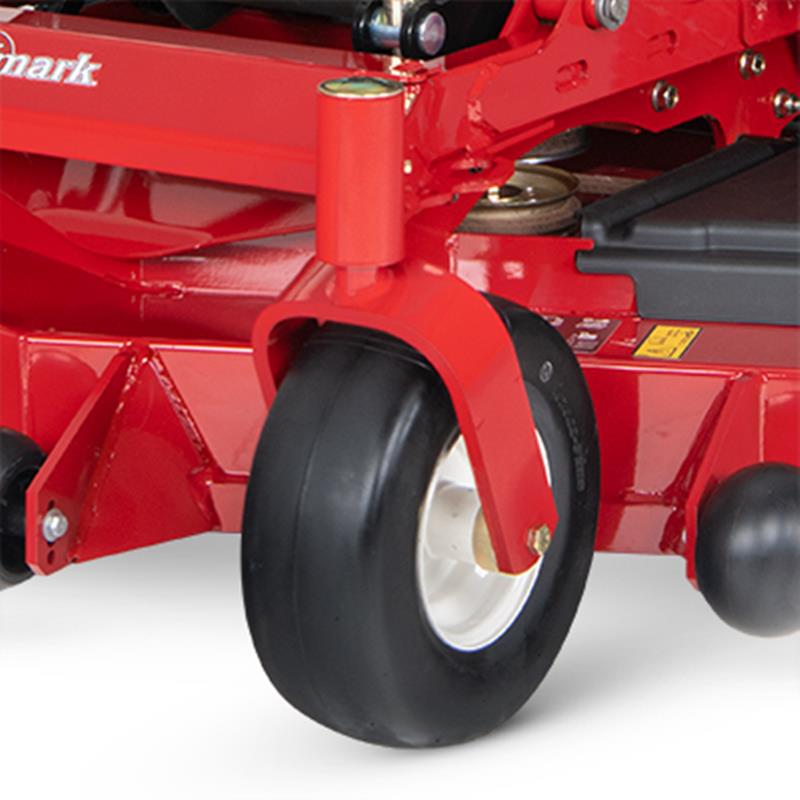

Front Caster Tires
13 x 5.0-6, smooth-tread, semipneumatic tires with tapered roller bearings.
Drive Tires
26 x 10.0-8 Carlisle Turf Master
Parking Brake
Lever-actuated bar brake.
Tractor Frame
Welded, heavy-duty 1.5″ x 2.5″ tubular steel.
Blade Spindles
No maintenance, sealed and nongreasable spindles; 7.75″ diameter cutter housing with 1.75″ diameter splined blade driver 1.0″-diameter spindle shaft.

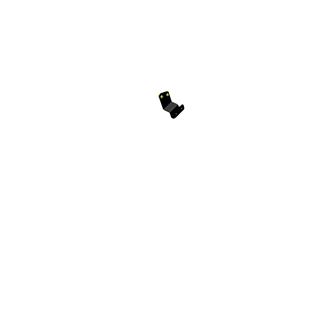

Cup Holder
Yes
Electrical
12-volt battery with 15-amp alternator.
Standard Features
Enhanced Engine Hour Meter
Transmission Brand
Hydro-Gear
Transmission Speeds
Infinitely Variable
Engine Brand
Kohler
Engine Model
EZT750
Engine Displacement
747
Speed
Infinitely variable speed selection 0–8.5 mph forward
Transmission
Hydrostatic
Engine Series
Command™ EFI
Fuel System
Electronic Fuel Injected
Engine Speed
3,750 rpm
Fuel Capacity
8-gallon single fuel tank on LH side
Air Filter
Heavy-duty canister air filtration system
Drive Description
Two Hydro-Gear 12 cc pumps powering two Parker 14.5 cubic inch motors.
Fuel Type
Gas EFI
PTO Engagement
Warner 175 ft-lb clutch
Drive System
Hydro-Drive
Fuel Indicator
Float gauge
Drive Wheel Release
Allows unit movement without engine running.

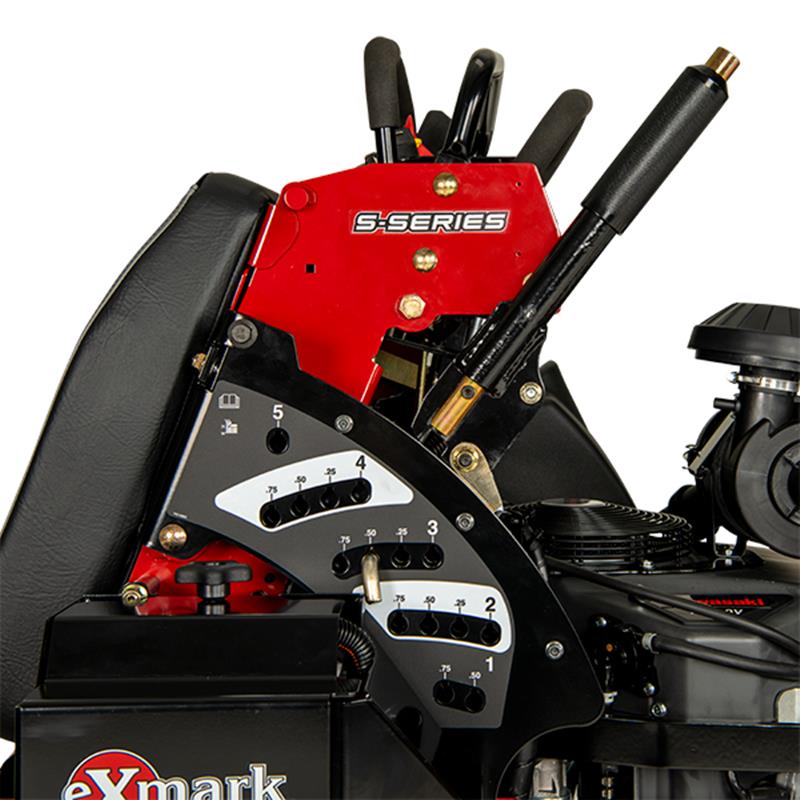

Deck Lift
Single point HOC; with mechanical lift-assist springs.
Carb Compliant
NO
Safety Package
Operator Presence Controls (OPC) with safety interlock system indicators

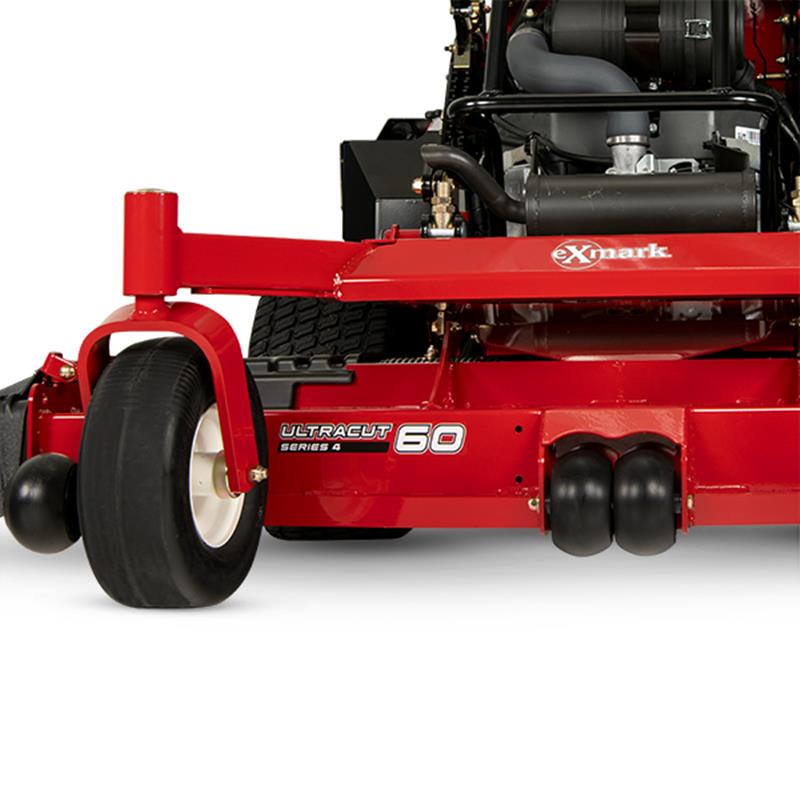

Deck Style
Floating Deck
Deck Style Description

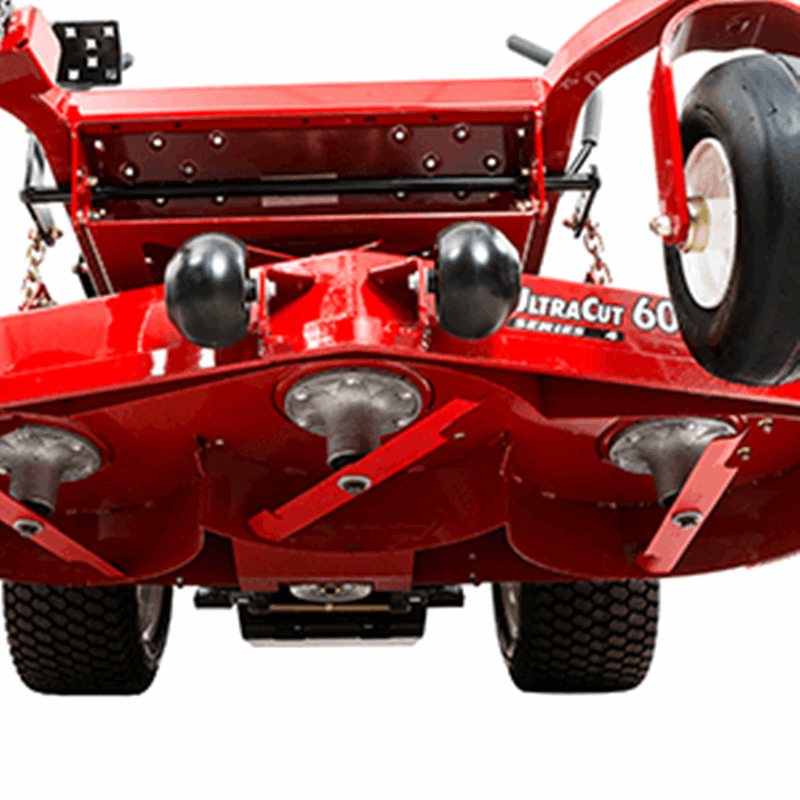

Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Width / Cutting Deck
48″
Deck Construction
10-gauge top that is formed and continuously seam welded, 7-gauge side skirt
Cutting Heights
1.5″ to 5.0″ in 0.25″ increments
Blade Tip Speed
Approximately 18,500 fpm

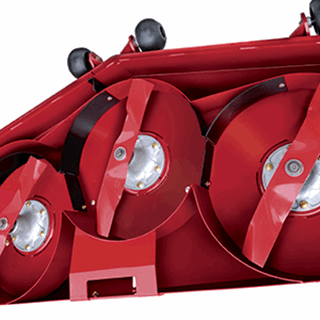

Blades
3 Blades at 16.25″ Length
Width
60.05″
Height
49.2″
Curb Weight
925
Length
65.33″
