Contact us for pricing

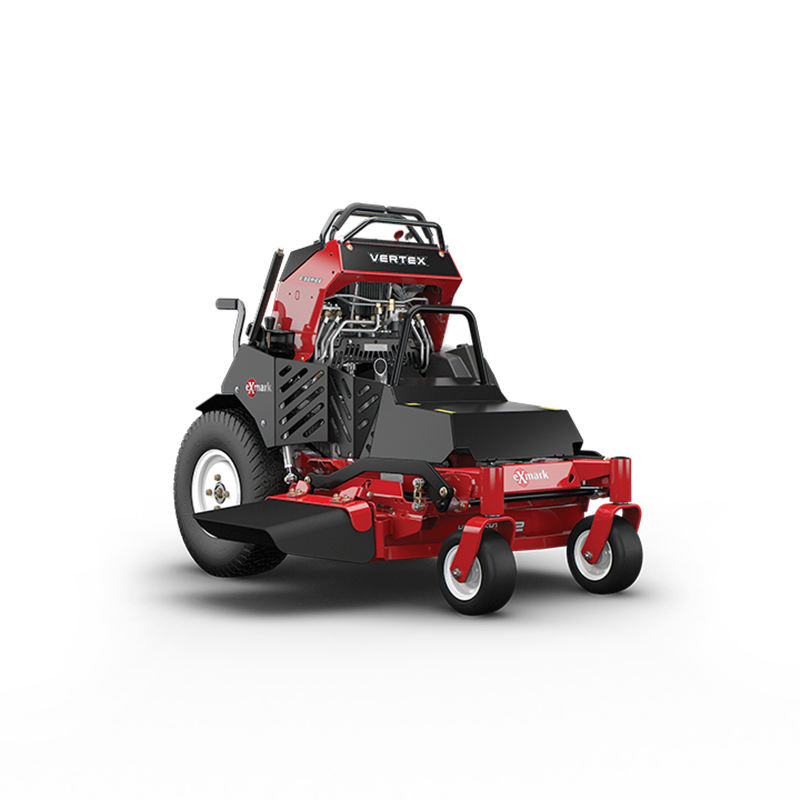

When you need a more productive mower for small to mid-size properties, Vertex E-Series is the right choice. With the operator placed comfortably on a suspended platform between the drive wheels, Vertex E-Series is designed to easily clear gates that would stop larger machines in their tracks. And with speeds up to 7.5mph forward, you’ll finish jobs faster, with less fatigue, than you would with a walk-behind mower. Your customers will love Exmark’s signature cut quality, and you’ll love how fast you got the job done. That’s a win-win.
UPC
193308241401
Steering Control
Twin levers with adjustable front reference bar to modify forward ground speed.
Front Caster Tires
9 x 4.50-5, smooth-tread, semi-pneumatic tires with sealed ball bearings.
Drive Tires
21 x 7.00-10 Kenda K507
Parking Brake
Lever-actuated bar brake.
Tractor Frame
Welded, heavy-duty 1.5″ x 3″ tubular steel.
Blade Spindles
No maintenance, sealed and nongreasable spindles; 7.75″ diameter cutter housing with 1.75″ diameter splined blade driver 1.0″-diameter spindle shaft.
Cup Holder
No
Electrical
12-volt battery with 15-amp alternator.
Standard Features
Engine Hour Meter
Engine Brand
Kawasaki
Engine Model
FS600V
Engine Displacement
603
Speed
Infinitely variable speed selection 0–7.5 mph forward, 0–4.0 mph reverse
Engine Series
V-Twin
Fuel System
Carbureted
Engine Spec
_S36
Engine Speed
3,600 rpm
Fuel Capacity
5-gallon single fuel tank with single fill location
Air Filter
Standard Engine Manufacturer’s air filter
Drive Description
Two Hydro Gear 10 cc pumps powering two Parker 12 cubic inch motors.
Fuel Type
Gas Carbureted
PTO Engagement
Warner 105 ft-lb clutch
Drive System
Hydro-Drive
Fuel Indicator
Float gauge
Drive Wheel Release
Allows unit movement without engine running.
Deck Lift
Single point HOC
Carb Compliant
Yes
Safety Package
Operator Presence Controls (OPC) with safety interlock system indicators
Deck Style
Floating Deck

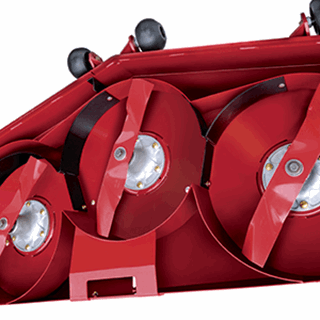

Deck Style Description
Full-floating UltraCut Series 3. Side discharge standard, with flexible discharge chute and option to bag or mulch.
Width / Cutting Deck
36″
Deck Construction
7-gauge top that is formed and continuously seam welded, 7-gauge side skirt
Cutting Heights
1.0″ to 4.5″ in 0.25″ increments
Blade Tip Speed
Approximately 18,500 fpm
Blades
2 Blades at 18.00″ Length
Width
48″
Height
47.3″
Curb Weight
779
Length
58.1″
