Contact us for pricing

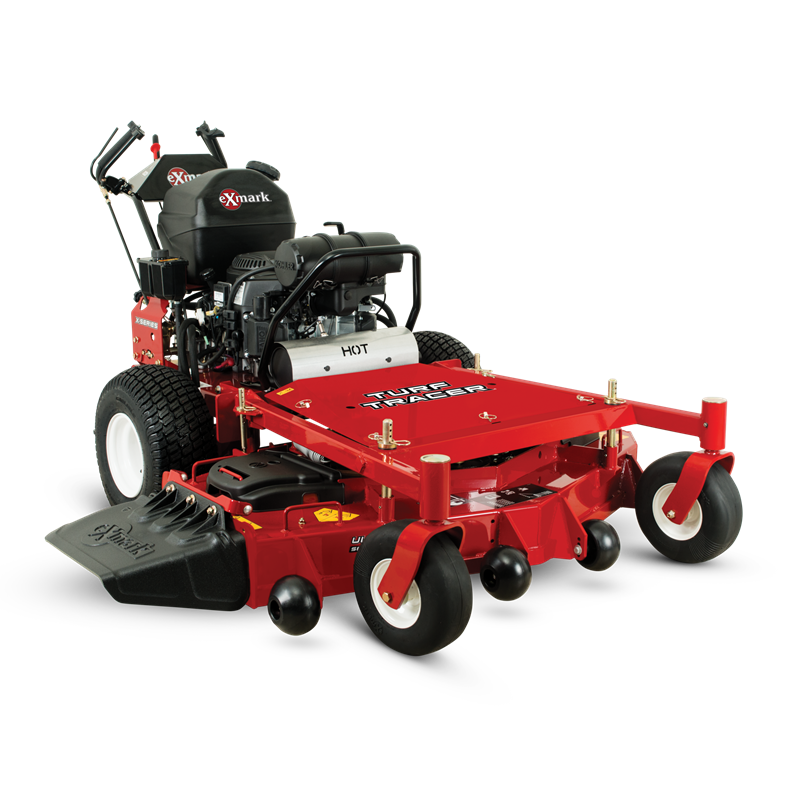

By virtually any measure, the Turf Tracer X-Series represents the definitive, full-featured hydro mower. Whether you choose the 52- or 60-inch cutting deck, the UltraCut™ Series 4 with splined spindle blade driver is up to the toughest jobs. As are the X-Series engines—Kohler® EFI. Ground speeds up to 6.75 mph, and up to 2.25 in reverse, also rank the Turf Tracer X-Series among the most productive mowers in its class. Want to view the rest of our lineup of self-propelled mowers? Check out our full lineup of commercial walk-behind mowers.
UPC
193308240985
Starter
Electric
Steering Control
Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn.
Front Caster Tires
11 x 4.0-5, smooth tread, semi-pneumatic.
Drive Tires
18 x 8.5-8, 4-ply Turf Master®
Safety Package
Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator’s position without stopping engine
Parking Brake
Lever-actuated mechanical compression.
Electrical
12-volt battery with 20-amp alternator.
Standard Features
Enhanced engine hour meter
Transmission Brand
Hydro-Gear
Transmission Speeds
Infinitely Variable
Engine Brand
Kohler
Engine Model
ECV730
Engine Displacement
747
Transmission
Hydrostatic
Engine Series
Command™ EFI
Fuel System
Electronic Fuel Injected
Speed
Infinitely variable speed selection from 0– 6.75 mph forward, 0–2.25 mph reverse
Drive
Hydro-Drive
Engine Spec
3051
Engine Speed
3,600 rpm
Air Filter
Heavy-duty canister air filtration system
Fuel Capacity
5-gallon single fuel tank with single fill location
Drive Description
Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1″ tapered shafts.
Fuel Type
Gas EFI
PTO Engagement
Electromagnetic 200 ft-lbs clutch
Drive Wheel Release
Allows unit movement without engine running.
Fuel Indicator
None
Deck Lift
Manual lift with hairpin from hole to hole for position adjustment.
Carb Compliant
No
Deck Style
Floating Deck
Deck Style Description
Full-floating UltraCut Series 3, side discharge standard, with molded discharge chute and option to bag or mulch.
Width / Cutting Deck
52″
Deck Construction
10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge welded spindle mounting locations for improved strength.
Cutting Heights
1.5″ to 4.5″ in 0.5″ increments
Blade Spindles
No maintenance, sealed and non-greasable spindles; 7.75″-diameter cutter housing with 25mm (.98″) diameter spindle shaft and splined blade driver.
Blade Tip Speed
Approximately 18,500 fpm
Blades
3 Blades at 18.00″ Length
Width
64.3″
Height
42″
Curb Weight
690
Length
75.9″
