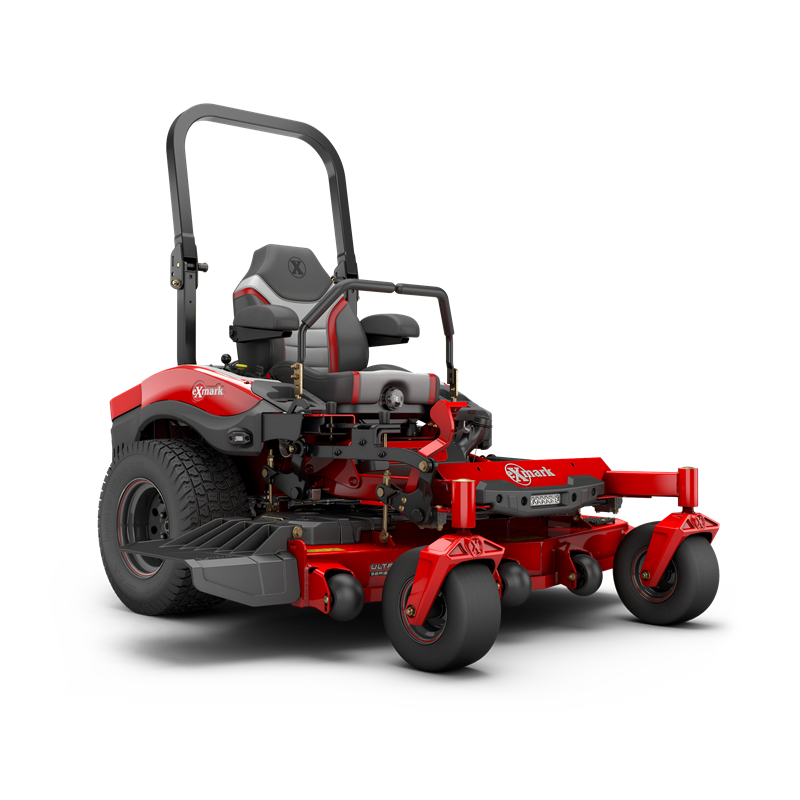

For more than 30 years, the Exmark Lazer Z has been the choice of more landscape professionals than any other zero-turn mower. For pros that demand the absolute best durability, productivity, cut quality and innovation, the Lazer Z X-Series is the number one choice. With more configuration options than any other Exmark mower, the Lazer Z X-Series is the pinnacle of state-of-the-art commercial mowers. Choose from 52-, 60-, or 72-inch UltraCut Series 6, or massive 96-inch UltraCut Rear Discharge cutting decks. Our exclusive flow control baffles and Adapt tools-free deck rake adjustment deliver Exmark Signature cut quality and higher cutting speeds in any mowing conditions. Powered by a choice of state-of-the-art big block EFI V-Twin commercial engines from Kawasaki, Kohler and Vanguard, the Lazer Z X-Series powers through the largest jobs with ease. A long-travel full suspension operator seat features isolation bumpers to deliver a smoother ride for reduced operator fatigue.When you’re looking for the pinnacle of power, performance, cut quality and durability in a commercial zero-turn mower, the Lazer Z X-Series is the obvious choice. Be sure to check out our other Lazer Z models as well, including the Lazer Z Diesel.(LRX models available Spring 2025)
UPC
193308241531
Width / Cutting Deck
60″
Drive
Hydro-Drive
Starter
Electric
Steering Control
Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. Adjustable dampers (3 positions) to customize drive responsiveness
Caster Forks
.50″ thick caster yoke arms.
Front Caster Tires
13 x 6.5-6, smooth tread, semi-pneumatic
Drive Tires
24 x 12-12, 4 ply Grassmaster TL
Safety Package
Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
Parking Brake
Lever actuated disc brake
Tractor Frame
Unibody, welded, heavy-duty 1.5″ x 3″ tubular steel.
Blade Spindles
No maintenance, sealed and non-greasable spindles; 7.75″-diameter cutter housing with 30mm (1.18″) diameter spindle shaft and splined blade driver.
Electrical
12-volt battery with 15-amp alternator.
Standard Features
Engine hour meter, USB plug-in, LED lights, phone tray and cup holder
Seat
Deluxe, three-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
Engine Brand
Kawasaki®
Transmission Speeds
Infinitely Variable
Engine Model
FX921V
Engine Displacement
999
Engine Series
V-Twin
Speed
Infinitely variable speed selection from 0–11.5 mph forward, 0–7.0 mph reverse
Engine Spec
FX921V
Engine Speed
3,750 RPM
Air Filter
Heavy-duty canister air filtration system
Fuel Capacity
12-gallon single fuel tank with single fill location
Drive Description
Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, shock valve, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 16 cc pumps and 17.1 cubic inch motors.
Fuel Type
Gas Carbureted
PTO Engagement
MagStop Electromagnetic 250-ft-lb clutch with spot brake
Drive Wheel Release
Allows unit movement without engine running.
Fuel Indicator
Yes – electronic Sender
Deck Lift
Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position. Equipped with Adapt system.
Carb Compliant
No
ROPS
2-post foldable ROPS standard with seat belt and latch.
Deck Style
Floating Deck
Deck Style Description
Full-floating UltraCut Series 6 with heavy-duty spindle. Side discharge standard with the option to bag or mulch.
Deck Construction
10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.
Cutting Heights
1.0″ to 5.5″ in 0.25″ increments
Blade Tip Speed
Approximately 18,500 fpm
Blades
3 Blades at 20.50″ Length
Width
72.8″
Height
70.5″
Curb Weight
1256
Length
83.1″
