Contact us for pricing

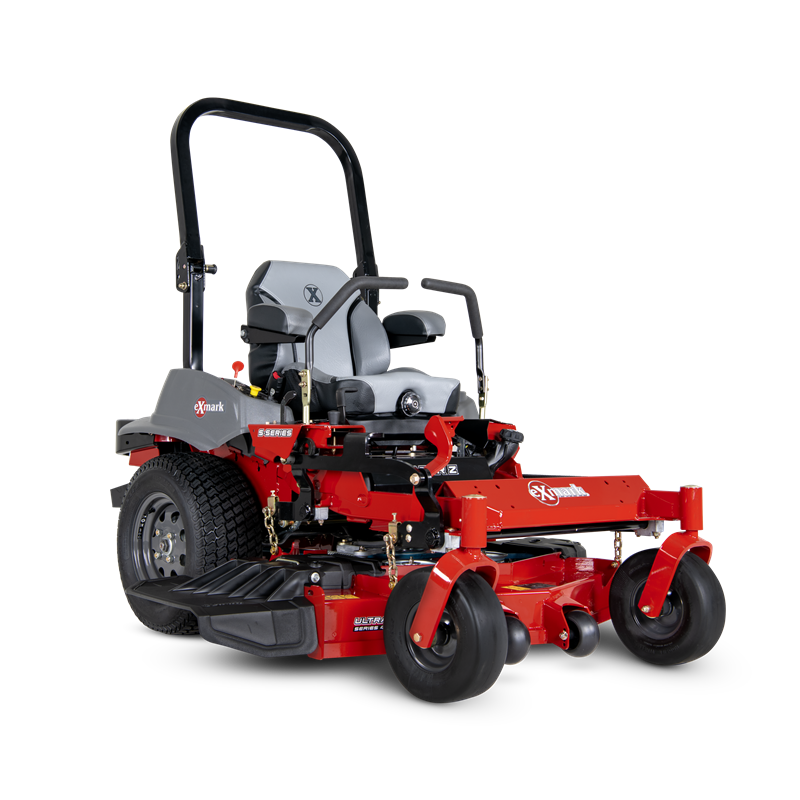

The Lazer Z S-Series makes up the core of countless landscape professionals’ fleets. With 30 years of refinement and innovation, the Lazer Z S-Series delivers maximum durability and Exmark Signature cut quality, with options for larger decks and more powerful engines than the Lazer Z E-Series. Select from 52-, 60-, or 72-inch UltraCut Series 4, or 60- or 72-inch UltraCut Rear Discharge cutting decks, with a choice of powerful Kawasaki or EFI Kohler commercial engines. In all, the Lazer Z S-Series delivers the power and productivity to make quick work of large jobs, with the reliability and long-term value Exmark owners expect. Be sure to check out the entire Lazer Z family, including thethe new Lazer Z X-Series zero-turn mowers.(LRS models available Spring 2025)
UPC
193308243504
Width / Cutting Deck
60″
Drive
Hydro-Drive
Starter
Electric
Steering Control
Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. Adjustable dampers (3 positions) to customize drive responsiveness
Caster Forks
.50″ thick caster yoke arms.
Front Caster Tires
13 x 6.5-6, smooth tread, semi-pneumatic
Drive Tires
24 x 12-12, 4 ply Grassmaster TL
Safety Package
Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
Parking Brake
Lever actuated disc brake
Tractor Frame
Unibody, welded, heavy-duty 1.5″ x 3″ tubular steel.
Blade Spindles
No maintenance, sealed and non-greasable spindles; 7.75″-diameter cutter housing with 25mm (.98″) diameter spindle shaft and splined blade driver.
Electrical
12-volt battery with 15-amp alternator.
Standard Features
Engine hour meter and cup holder
Seat
Deluxe, bolstered suspension seat with Elastomeric Vibration Control material. Adjustment: Fore and aft from Operators’ Position.
Transmission Speeds
Infinitely Variable
Engine Brand
Kawasaki®
Engine Model
FX801V
Engine Displacement
852
Engine Series
V-Twin
Speed
Infinitely variable speed selection from 0–10.0 mph forward, 0–7.0 mph reverse
Engine Spec
_S31-R
Engine Speed
3,750 RPM
Air Filter
Heavy-duty canister air filtration system
Fuel Capacity
12-gallon single fuel tank with single fill location
Drive Description
Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 12 cc pumps and 14. 5 cubic inch motors.
PTO Engagement
MagStop electromagnetic 200-ft-lb clutch with spot brake
Fuel Type
Gas Carbureted
Drive Wheel Release
Allows unit movement without engine running.
Fuel Indicator
Yes – electronic Sender
Deck Lift
Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Carb Compliant
No
ROPS
2-post foldable ROPS standard with seat belt and latch.
Deck Style
Floating Deck
Deck Style Description
Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Deck Construction
10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.
Cutting Heights
1.0″ to 5.5″ in 0.25″ increments
Blade Tip Speed
Approximately 18,500 fpm
Blades
3 Blades at 20.50″ Length
Width
72.8″
Height
70.5″
Curb Weight
1209
Length
83.1″
