Contact us for pricing

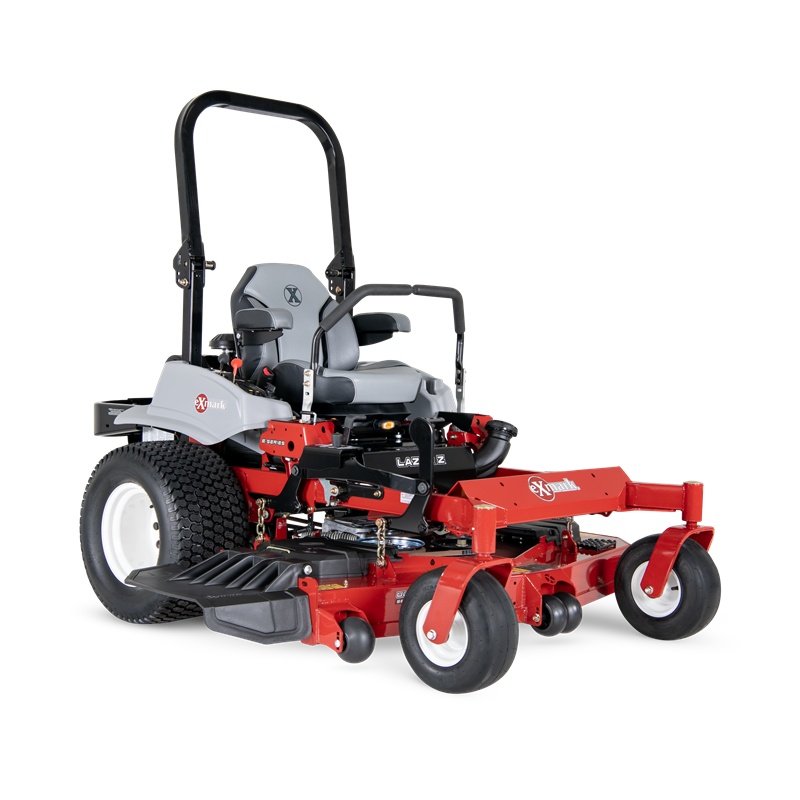

As the most affordable model in the Lazer Z line, the all-new 2025 Lazer Z E-Series delivers an unbeatable combination of cut quality, productivity, durability and value. Select from 48-, 52-, or 60-inch UltraCut Series 4 cutting decks, all equipped with a newly redesigned discharge chute that distributes clippings over a wider area. A choice of twin-cylinder Kawasaki, Kohler, or Vanguard twin-cylinder commercial engines are available, all equipped with heavy-duty external air filters. Power is delivered through unitized Hydro Gear pump and motor units for up to 11 mph forward ground speeds. A new full-suspension operator seat increases operator comfort during long work days.Like our entire lineup of zero-turn mowers, the Lazer Z E-Series delivers unmatched durability and long-term value. Be sure to check out the rest of the Lazer Z family, including the Lazer Z S-Series zero-turn mower.
UPC
193308242248
Width / Cutting Deck
60″
Drive
Hydro-Drive
Starter
Electric
Steering Control
Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Caster Forks
.50″ thick caster yoke arms.
Front Caster Tires
13 x 6.5-6, smooth tread, pneumatic. Sealed ball bearings.
Drive Tires
24 x 12-12, 4 ply Super Turf TL
Safety Package
Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
Parking Brake
Lever actuated internal wet disc brake
Tractor Frame
Unibody, welded, heavy-duty 1.5″ x 3″ tubular steel.
Blade Spindles
No maintenance, sealed and non-greasable spindles; 7.75″-diameter cutter housing with 25mm (.98″) diameter spindle shaft and splined blade driver.
Electrical
12-volt battery with 15-amp alternator.
Standard Features
Engine hour meter and cup holder
Seat
Deluxe suspension seat, foam flip-up armrests, and integral safety switch. Adjustment: Fore and aft from operator’s position.
Engine Brand
Kawasaki®
Transmission Speeds
Infinitely Variable
Engine Model
FX921V
Engine Displacement
999cc
Engine Series
V-Twin
Fuel System
Carbureted
Speed
Infinitely variable speed selection from 0–11.0 mph (16 kmph) forward, 0–6.0 mph (9.7 kmph) reverse.
Engine Spec
FX921-AS25-R
Engine Speed
3750 RPM
Air Filter
Heavy-duty canister air filtration system
Fuel Capacity
9.5-gallon single fuel tank with single fill location
Drive Description
Dual Hydro-Gear ZT-4400, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.
Fuel Type
Gas Carbureted
PTO Engagement
MagStop Electromagnetic 200 ft-lb clutch with spot brake
Drive Wheel Release
Allows unit movement without engine running.
Fuel Indicator
Mechanical float
Deck Lift
Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Carb Compliant
No
ROPS
2-post foldable ROPS standard with seat belt and latch.
Deck Style
Floating Deck
Deck Style Description
Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Deck Construction
10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt, and 7-gauge reinforcement plate welded to spindle mounting locations for improved strength.
Cutting Heights
1.5″ to 5.5″ in 0.25″ increments
Blade Tip Speed
Approximately 18,500 fpm
Blades
3 blades at 20.50″ Length
Width
72.7″
Height
70.1″
Curb Weight
1093
Length
84.6″
